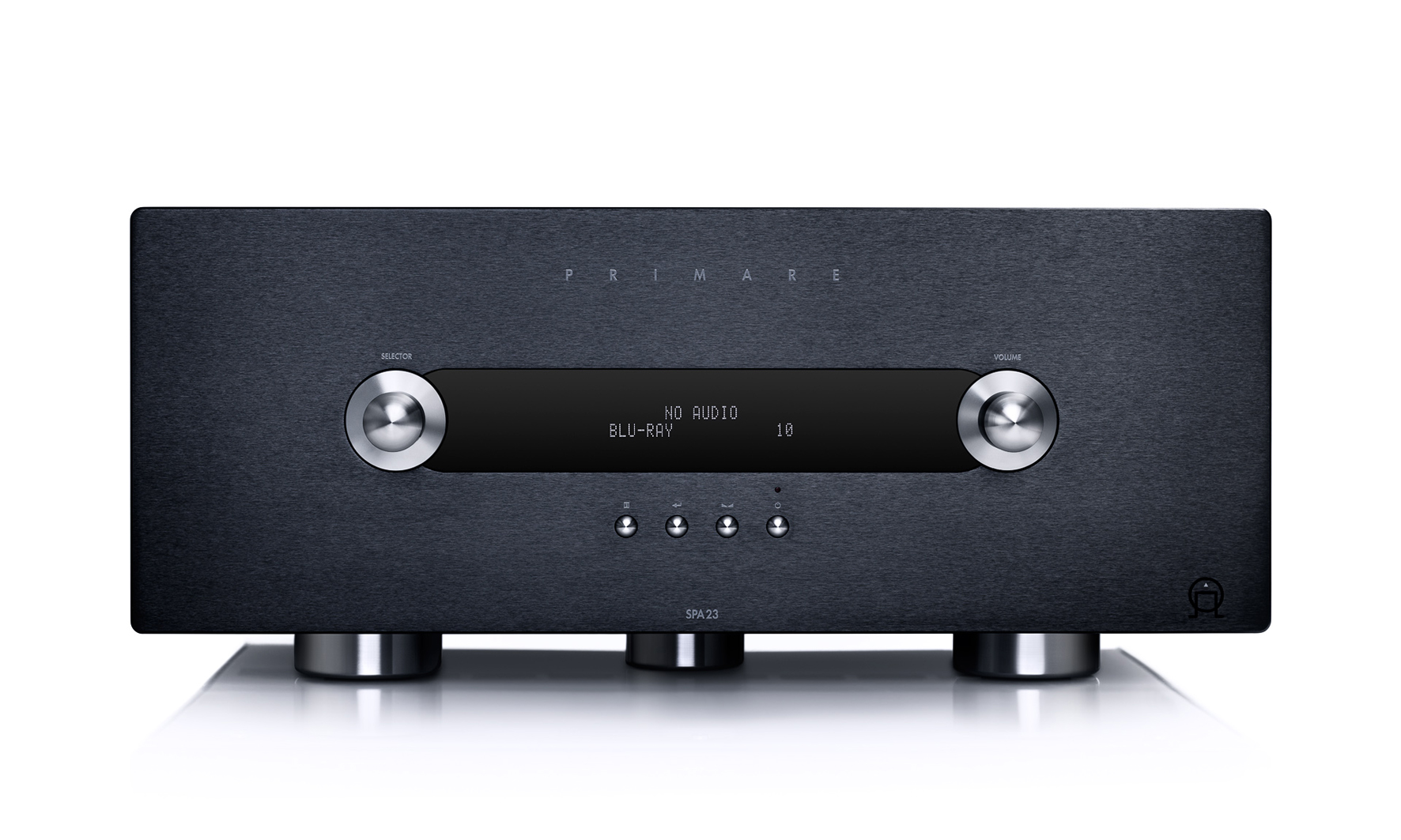

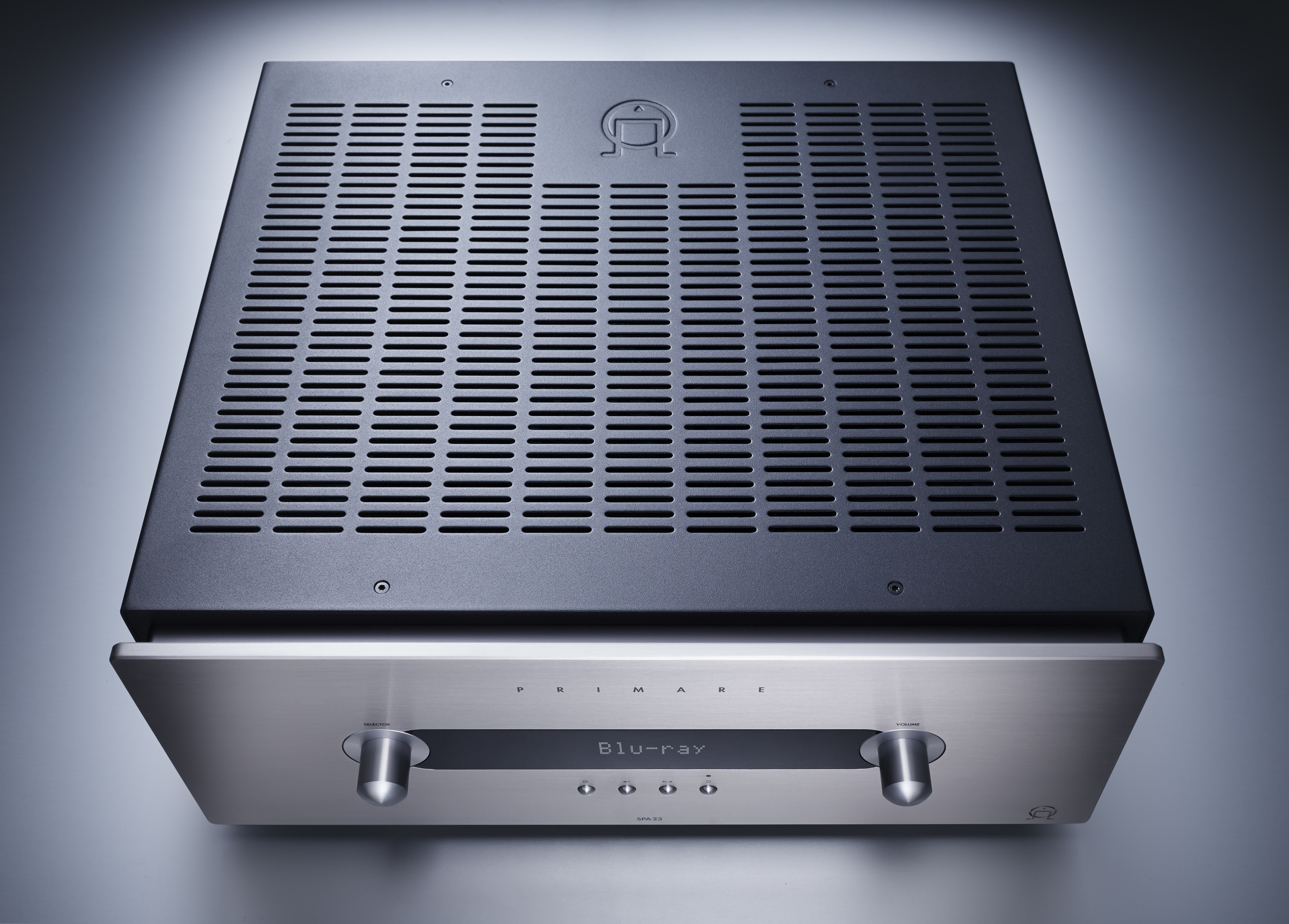

The new SPA23 4KVM AV amplifier is definitively Primare, integrating superior innovation, flexibility and signal purity with an exclusive visual sophistication. Equipped with five identical 120W UFPD amplifiers, HD audio processing, the new 4KVM 4K UHD video module, and a versatile range of analogue and digital audio inputs, the SPA23 will realise the potential of high definition film and music sources.
The SPA23 4KVM performs brilliantly at the centre of your home AV system. Through simple onscreen menus and the new C24 remote supplied you can optimise the performance of every component with ease. Connect all of your sources to the SPA23 and customise each input with a name - ‘Blu-ray’ or ‘cable’ for instance. Then select a surround format for each according to source: Dolby TrueHD or DTS-HD Master Audio would be appropriate for FullHD movies from Blu-ray disc or online sources. Next match the sound of each format to your room with precise adjustments for level, speaker type, crossover frequency, delay and bass management. Fine-tune performance and functionality still further with sensitivity control and 12V trigger activation per input. With all of your sources set-up you can create automatic audio and video associations between them, achieving perfect sound and picture synchronisation every time through the SPA23’s global delay DSP. New 4KVM video circuitry features 4K and 3D video pass-through, with matrix switching facility for six HDMI inputs and two ARC assignable HDMI outputs. All this is possible with fingertip control from the C24 remote. Beyond the handset, compatibility with third party home automation systems is assured through IR and RS232 connections.
Use the SPA23 4KVM with the matching and acclaimed BD32 MKII universal player, with 4K upsampling, and add the A34.2 two-channel power amplifier for full seven channel surround.
Output power 5 X 120W 8Ω
Analogue Inputs 8 RCA, incl. 7.1 inputs
Digital Inputs 3 RCA, 3 TOS-Link
Video Inputs 6 HDMI, with matrix switching

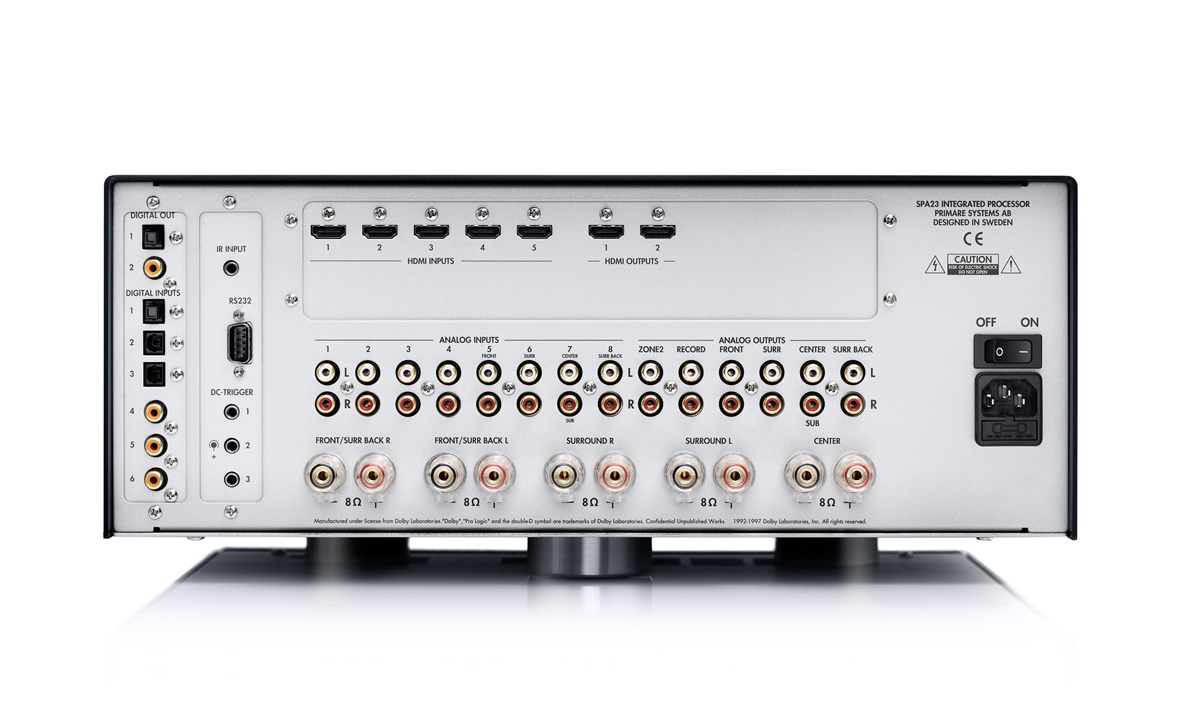

Analogue Outputs Front (left and right), Centre, Sub, Surr (left and right), Surr back (left and right)
Analogue Record Output 1 RCA (left and right)
Zone2 Output 1 RCA (left and right)
Digital Output 1 RCA, 1TOS-Link
Video Output 2 HDMI, with assignable ARC
Zone 2 1 RCA (left and right)
Modes Stereo, Bypass, Party, Dolby Prologic IIx Music, Dolby Prologic IIx Movie, DTS NEO:6 MUSIC, DTS NEO:6 CINEMA Decoding Formats Dolby Digital, Dolby Digital EX, Dolby Prologic II, Dolby Prologic IIx, Dolby EX, Dolby Plus, Dolby TrueHD, DTS, DTS ES, DTS Neo:6, DTS 96/24, DTS HDMaster Audio, DTS HD High Res audio, MULTI/2 CH PCM/LPCM
Sampling rates 32KHz,44.1KHz,48KHz, 88.2KHz,96KHz,192KHz
Video HDMI HDCP 2.2 with 4K and 3D pass-thru, and HDMI OSD
Other out-/inputs 1 IR Input, 3 12v outputs (triggers), 1 RS232,
Fully stabilized SMPS
Power Consumption operate 800W at 1K, 8R ,120W all channels driven
Analogue Preamp Data THD <0.005%, 20 Hz-20kHz
Signal-to-Noise -110 dB
Frequency Response 10 Hz-100 kHz, 1dB Input
Impedance 47 KΩ, unbalanced
Output Impedance 47 R unbalanced
Power Amp Data
Output power 1Khz, 8R 150W THD+N <1% one channel driven 4R 300W THD+N <1%, AP AUX0025 Filter Output power 1Khz, 120W 4/8R THD+N <0.1% all channels driven AP AUX0025 Filter THD <0.01% 20-20Khz 1W 8R, AP AES17 Filter Signal-to-noise 80dBr, AP AES17 filter, ref 2.828Vrms.
Frequency Response 20 Hz-20 kHz -0.2dB, 1W 8R
Frequency Response 20 Hz-20 kHz+ 0.2dB THD+Noise 0,005% @1 kHz(AES17 filter) Dimensions (WxDxH) 430 x 385 x 180 mm
Colour options Black or Titanium
